Invert Screen on Keg Punk Taproom Station

Updated: Apr 15

Do you want to invert (rotate 180°) the screen on your Keg Punk Taproom Station? Maybe you want to mount it differently but the screen would be upside down?


No....turning the touchscreen and expecting it to automatically rotate is not gonna work. Instead, follow a few simple steps below. You will need a keyboard, and a mouse is handy if you have one.



ACCESS THE CONFIG FILE


Step 1

Attach a mouse and keyboard to the USB inputs, then open a terminal by clicking the square black icon at the top left on the menu bar.

computer terminal

Step 2

Enter the following in the terminal and hit Enter:


sudo nano /boot/config.txt


This opens the config file

computer terminal

Back to Top



ADD ROTATE COMMAND (OR REMOVE IF ROTATING BACK)

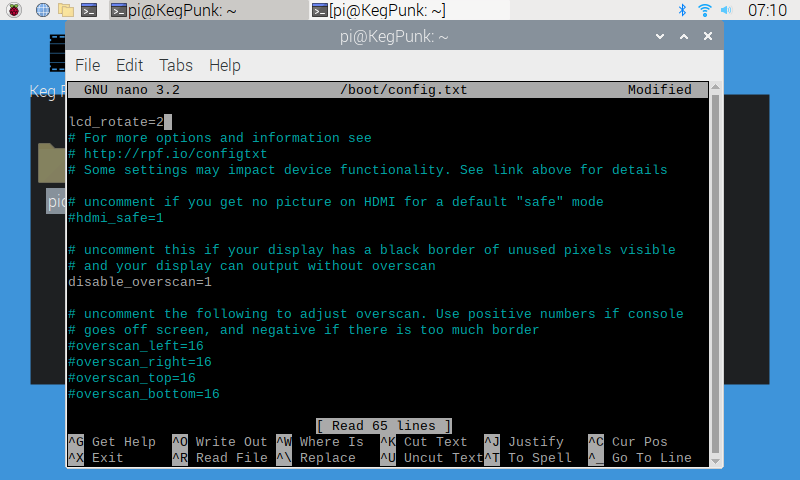

Step 3

Add the following as the first line in the file (or remove if rotating back). You may need to hit "Enter" to add a new blank line to make the addition.


lcd_rotate=2


computer terminal

Back to Top



SAVE


Step 4

On your keyboard

  • To save changes, hit "Ctrl x"

  • To confirm, hit "y"

  • Then hit "Enter"

This should take you back to the terminal.



REBOOT

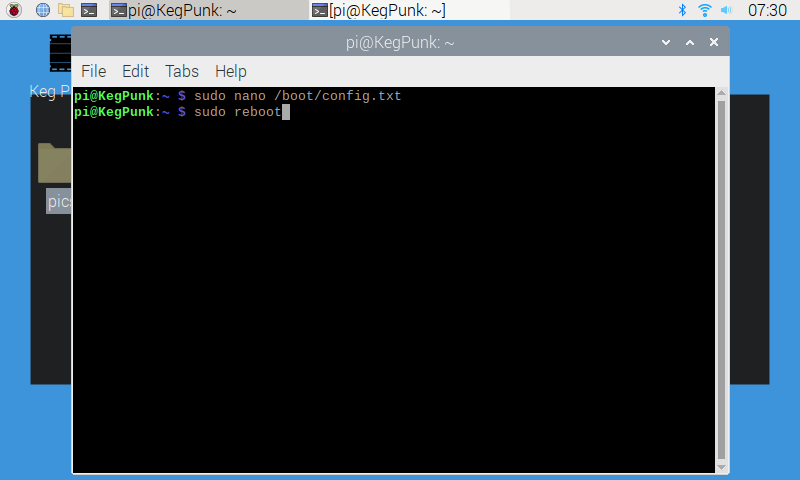

Step 5

Enter the following in the terminal and click "Enter" to reboot your Pi.


sudo reboot


computer terminal

When your Pi boots back up, it should have rotated the screen 180°.


Back to Top


HELP!


Go to our HELP post for problems and FAQ's


CONTACT US

Go to Contact Page

Email directly: patrick@arithmech.com


If you like Keg Punk let us know and spread the word! If you hate Keg Punk, then for Punk's sake, LET US KNOW!


Cheers Y'all!
