Install Keg Punk on a Raspberry Pi

Updated: Apr 15

Rock On! You've got yourself a copy of Keg Punk and are ready to install it on your Raspberry Pi. The software is packaged in a zip folder, so you'll start out by extracting it. Follow the steps below or jump to a specific section.

IS YOUR PI READY?

As far as we know, all new versions of Raspberry Pi are running Raspberry Pi OS and

Python 3...but just in case...

  • We recommend upgrading to Raspberry Pi OS if you have an older OS.

  • Keg Punk runs on Python 3 - check your Pi's current version by entering the following into a terminal:

python --version

- or -

python3 --version


BACK TO TOP

EXTRACT

  • If you downloaded Keg Punk straight to your Pi, skip to step 2.

  • If you downloaded Keg Punk on another computer and will transfer to your Pi on a flash drive, start at step 1.

STEP 1

Load the downloaded zip folder to a flash drive. After inserting the flash drive to your Pi, click “OK” to Open in File Manager.

Raspberry Pi desktop screen and GUI


STEP 2

Right click on the “Arithmech.zip” folder and select “Extract To…”.

Raspberry Pi desktop screen and GUI

STEP 3

Extract to:

/home/pi

then click “Extract”

Raspberry Pi desktop screen and GUI

STEP 4

Navigate to the “Home Folder” (i.e., /home/pi). You should see the extracted “Arithmech” folder.

Raspberry Pi desktop screen and GUI

BACK TO TOP


DESKTOP SHORT-CUT

NOTE: There is a file in the folder called “Keg Punk” with a keg icon. This is a launcher script file that will be used as the desktop shortcut.


STEP 5

In the Arithmech folder, cut the “Keg Punk” launcher file.

Raspberry Pi desktop screen and GUI

STEP 6

Paste the file in the Desktop folder (i.e., /home/pi/Desktop). It should also show up on the Desktop.

Raspberry Pi desktop screen and GUI

BACK TO TOP


INSTALL MISSING PACKAGES

NOTE: You will need to use the terminal to install a few packages before running Keg Punk.


STEP 7

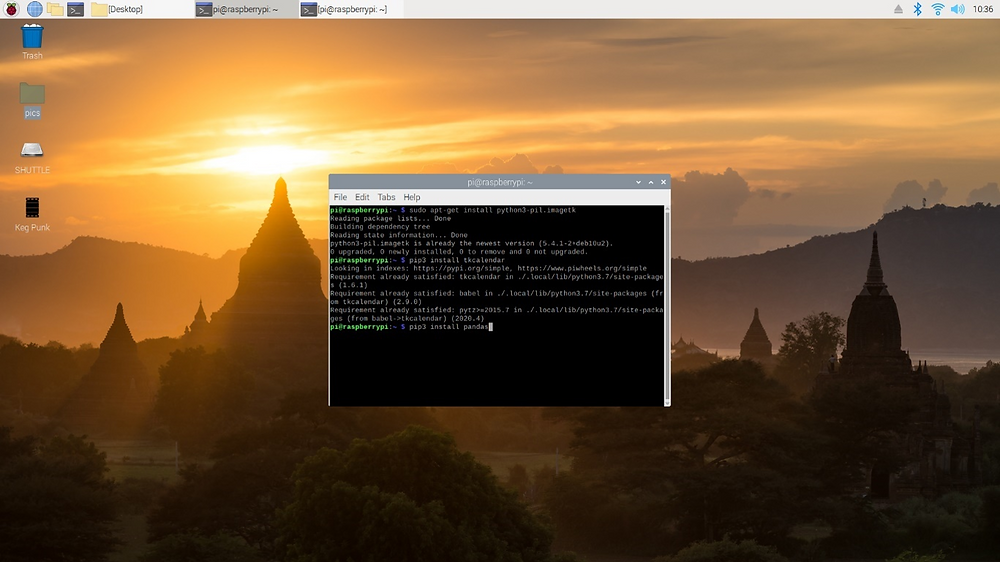

Open a terminal. Enter the following to download and install the imagetk package:


sudo apt-get install python3-pil.imagetk

Raspberry Pi desktop screen and GUI

STEP 8

Enter the following to download and install the tkcalendar package:


pip3 install tkcalendar

Raspberry Pi desktop screen and GUI

STEP 9

Enter the following to download and install the pandas package


pip3 install pandas


Then enter the following to download a pandas support package

sudo apt-get install libatlas-base-dev


Then close the terminal

Raspberry Pi desktop screen and GUI

BACK TO TOP


CONFIGURE FOR EXECUTABLE

NOTE: This step ensures that you will not be prompted for approval each time you run Keg Punk.


STEP 10

Go to Main Menu -> Accessories -> File Manager -> Edit -> Preferences -> General

Check “Don’t ask options on launch executable file”.

Raspberry Pi desktop screen and GUI

BACK TO TOP


MAKE KEG PUNK EXECUTABLE

NOTE: Making the script executable allows you to launch Keg Punk from the Desktop short cut.


STEP 11

Open a terminal and enter the following to access the KegPunk directory:


cd /home/pi/Arithmech/KegPunk

(Note: there is a space between “cd” and “/home/…”)

Raspberry Pi desktop screen and GUI

STEP 12

Enter the following to make Keg Punk executable, then close the terminal:


chmod +x Main.py

Raspberry Pi desktop screen and GUI

BACK TO TOP


LAUNCH!


STEP 13

Double click the Keg Punk shortcut on the Desktop to run the program!

Check out this post for a quick guide on getting started using Keg Punk.

Raspberry Pi desktop screen and GUI

BACK TO TOP


HELP!


Go to our HELP post for problems and FAQ's


CONTACT US

Go to Contact Page

Email directly: patrick@arithmech.com


If you like Keg Punk let us know and spread the word! If you hate Keg Punk, then for Punk's sake, LET US KNOW!


Cheers Y'all!
